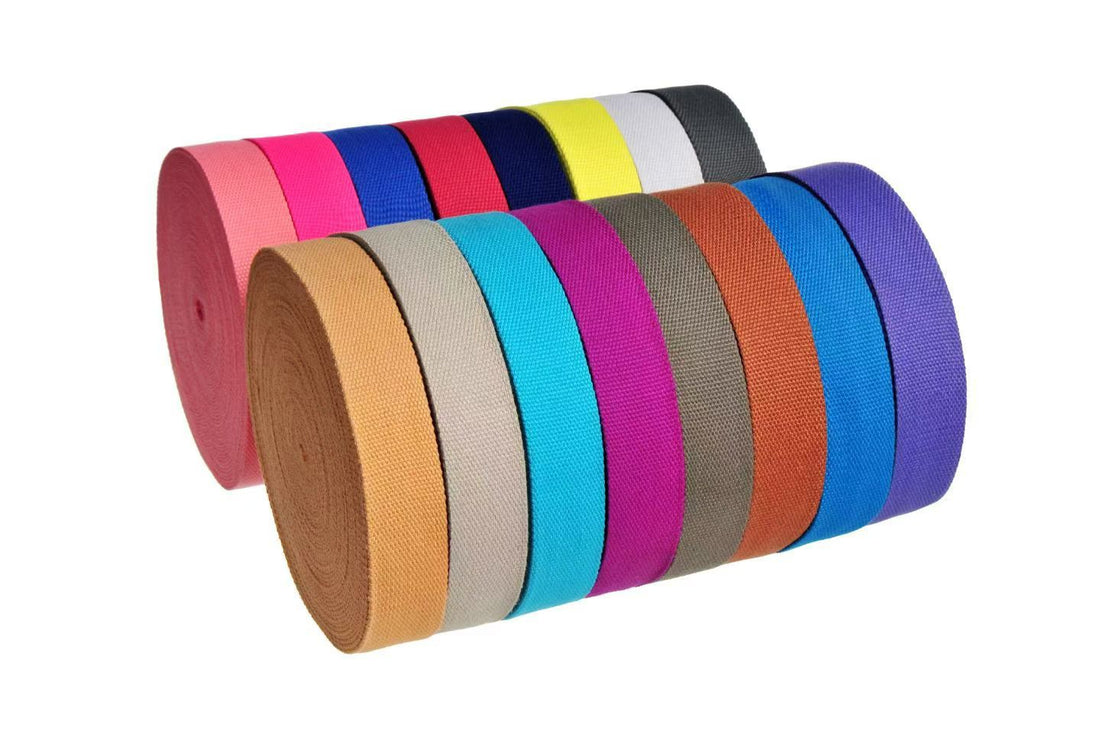

Webbing is the core tension-bearing component of all orthotic braces, lumbar supports, ankle stabilizers, and protective gear. The material hardness, stretching resistance, thickness, width, and weaving style directly determine the product’s tightening strength, wearing comfort, and overall durability.
In professional orthotic production, three main webbing materials are widely used: Polyester, Nylon, and Polypropylene. Each material has unique physical properties, making them suitable for different correction and protection scenarios. Understanding the differences helps brands select the most stable and cost-effective webbing for medical-grade protective gear.
Three Main Webbing Materials for Orthotic Products
Chart 1 Suggestion: Material Performance Comparison Table
|
Material
|
Tensile Strength
|
Elasticity & Softness
|
Wear Resistance
|
Application Feature
|
|---|---|---|---|---|
|
Polyester Webbing
|
High, stable tension
|
Moderate softness
|
Excellent, non-fading
|
Most popular mainstream choice for daily orthotic braces
|
|
Nylon Webbing (Polyamide)
|
Strong tensile force
|
Softer & more flexible
|
Very durable
|
High-end comfortable protective gear
|
|
Polypropylene Webbing
|
General strength
|
Slightly stiff
|
Average wear resistance
|
Basic low-cost accessories
|
Polyester webbing is our factory’s mainstream standard material for mass orthotic production. It balances stable tension strength, excellent wear resistance, and low deformation rate, perfectly fitting long-term repeated tightening and adjustment of lumbar braces, knee supports, and posture correctors.
Complete Webbing Width Specifications (Inch Standard)
Image Suggestion: Ruler size comparison picture showing 1/2”, 1”, 1.5”, 2”, 2.5”, 3” webbing width
To match different brace structures, binding areas and pressure requirements, we support full inch-size webbing widths:
1/2 inch, 1 inch, 1.5 inch, 2 inch, 2.5 inch, 3 inch
Narrow widths are used for auxiliary fixing parts, while wider webbing provides larger stress area, disperses pressure, and improves wearing comfort for heavy-duty protective braces.
Professional Thickness Grades (0.4mm / 1.0mm / 1.4mm)
Chart 2 Suggestion: Thickness Scenario Matching Chart
-
0.4mm ultra-thin webbing: Lightweight, soft, suitable for invisible fitting and fine adjustment parts
-
1.0mm standard thickness: Universal balance of strength and softness, most widely used in daily orthotic braces
-
1.4mm thickened webbing: Super tensile resistance, non-stretching, suitable for high-strength fixation rehabilitation braces
Two Main Weaving Styles for Customization
Image Suggestion: Side-by-side shot of plain weave webbing and jacquard webbing texture
We provide two mature weaving styles to enrich product appearance and grade:
1. Plain Weave Webbing — classic smooth surface, sturdy, durable, low-key texture, perfect for standard medical orthotic gear.
2. Jacquard Webbing — customized pattern, logo and texture available, high-end visual effect, ideal for branded premium protective products.
Why Our Webbing Improves Orthotic Brace Quality
Professional-grade orthotic webbing avoids loose weaving, easy stretching, edge fraying, and deformation problems found on cheap accessories. With complete material options, full-size specifications, and customizable weaving styles, we can perfectly match any lumbar support, knee brace, ankle support, and posture corrector project
